Plasma wave sterilization technology! OULIN WINIX purifier evaluation

[PConline Professional Evaluation] In our daily life, the pollution in the air is not only PM2.5, bacteria, viruses and other microorganisms will also directly affect our health. Compared with the outdoor air pollution, there are more harmful microorganisms in the indoor air. Human beings directly entering the lungs through breathing may cause various respiratory symptoms. The PConline evaluation room brings you the OULIN WINIX air purifier jointly launched by the Korean WINIX company and the OULIN Oulin Group. Equipped with PLASMAWAVE plasma wave core patented technology, it can not only filter PM2.5, molecular-level fine air pollutants, but also filter decoration pollution such as formaldehyde and benzene.

WINIX is a Korean listed company. Since its establishment in 1973, it has a history of 42 years. The production and R&D technologies in the field of air purification are quite mature. Now it has become the leading brand of healthy appliances in Korea. OULIN and WINIX jointly create the OULIN WINIX air purifier's original intention is to create a pure, healthy and comfortable living environment for Chinese families under the current situation of increasing air pollution in China. All products adhere to the original production and original imports. The OULIN OWE-A360 air purifier came to the evaluation room and filtered pollutants through a five-layer air purification system. The CADR value was as high as 320m3/h, and the applicable space was about 38m2. It was equipped with the patented PLASMAWAVE plasma wave core technology. Developed in cooperation with DREXEL University, one of the three largest plasma research institutes in the world, it creates a safe living environment for the user by simulating the purification of nature.

● Overall appearance

This air purifier OWE-A360WG jointly created by OULIN and WINIX, the “MADE IN KOREA” in the lower left corner of the fuselage shows the brand genes imported from Korea. The elegant combination of champagne gold and brown color fully embodies the exquisite expression of Korea's CMF, using metal brushed front panels to fully enhance the grade. The trapezoidal shape of the fuselage, the corner positions are all decorated with circular arcs, can be easily integrated with a variety of decoration style home environment.

Both sides of the front panel are wind inlets. The top outlet of the upper door is designed to help clean air fill the room. Automatically opening and closing the tuyere, with the purifier turned on or off, to prevent secondary pollution or foreign matter in the closed.

Automatic switch outlet

The top of the fuselage is equipped with touch operation panel, which can display the running mode of the machine, can set the opening time, automatic cleaning, sleep mode and plasma generator buttons. At the same time, the air volume can be adjusted and the child lock can be set. In the evening, the current light environment is automatically sensed and the display brightness is adjusted.

Front fuselage on the fuselage has dazzling LED lights, red, orange, green, blue, respectively, representing the current heavy air pollution, light pollution and good, good. After starting the dust sensor to assess the indoor air quality, at the same time according to the indoor light changes automatically adjust the brightness, you can also turn off the LED lights according to the needs of the user.

The dust sensor on the left side of the fuselage allows users to monitor the indoor air quality in real time and respond to users in real time through LED lights. The dust sensor should be regularly cleaned (officially recommended to clean it once every two months), easily press the buckle on the sensor cover, use a clean and dry cotton swab to clean the dust on the dust sensor see-through mirror.

Here must pay tribute to the manufacturer's intimate design, this air purifier is also equipped with the handle position, to facilitate the user to move the machine. The handle is deeper and upturned, which is in line with the gestures of the carrying, and the soft rubber is built-in anti-skid to see the designers' intentions.

In addition to the touch screen and WIFI phone operation, this machine can also operate through the remote control. By using infrared receiver technology, users can easily remotely control the purifier while sitting on the couch or lying in bed.

Summary: OULIN WINIX air purifier, in appearance reflects the exquisite performance of South Korea's CMF. The use of a champagne gold brushed material front panel not only makes the machine more upscale, but also maintains the lightness of the product, facilitating the movement of family members and replacing the use of space. Use the dust detection instrument to intuitively tell the user the current air quality through the color change of the LED light.

● Mobile phone configuration instructions

Smart home is the current trend of the industry. Home appliance manufacturers have added various intelligent systems to their products to enhance the strength of their products. The OULIN WINIX air purifier is no exception, equipped with IAM intelligent air management system. With wifi function, mobile phone APP control, real-time monitoring of indoor and outdoor air quality, remote control, check the filter usage status, appointment timing, query history air quality, no network mobile phone remote control and other functions.

To use the mobile phone to control the purifier, first download the “Smart Home” mobile phone APP terminal in the APP store, and then open the software to register the air purifier. After the air purifier's wifi is set to search for the network, return to the air purifier. Wi-Fi button, so that you can search through the phone to the wifi signal sent by the air purifier, and thus be able to connect.

From the main screen, you can see the current air quality of the air purifier, whether the plasma is turned on. Observed from the interface, the air quality of my room was normal. When you enter the control interface, you can also control its switch and all the operating functions at a distance to make it easier for the user to remotely control.

This APP not only controls the air purifier, but also the current lifespan of the filter. Even the instructions can be viewed on the APP.

Summary: This air purifier with wifi function, mobile APP control, while real-time monitoring indoor and outdoor air quality, remote control purifier, filter usage status query, appointment timing, query history air quality, no network mobile phone remote control Features. However, there are still improvements to be made on the iOS APP link. I believe that it will be improved through client-side updates.

● Air purifier filtration system dismantling

The air cleaner OWE-A360WG jointly developed by OULIN and WINIX is composed of a five-fold purification system, including a pre-filter, BIO SHIELD antibacterial filter (sterilization rate), activated carbon filter, True HEPA filter, and plasma wave. The patented technology uses a new generation of plasma wave purification technology, which is derived from nature's advanced technology and actively generates positive and negative ions. It can effectively decompose airborne bacteria, viruses, molds, and other microbial contaminants, causing them to lose their activity and achieve purification.

Filter Disassembly Video Demo:

Pre-filter

Capable of catching dust, hair, and other large particles in the air, the first filter is performed to effectively intercept large pollutants. In the maintenance and cleaning, you can use the low-speed vacuum cleaner to suck the dust. After washing with running water, dry it in a cool place to continue using it.

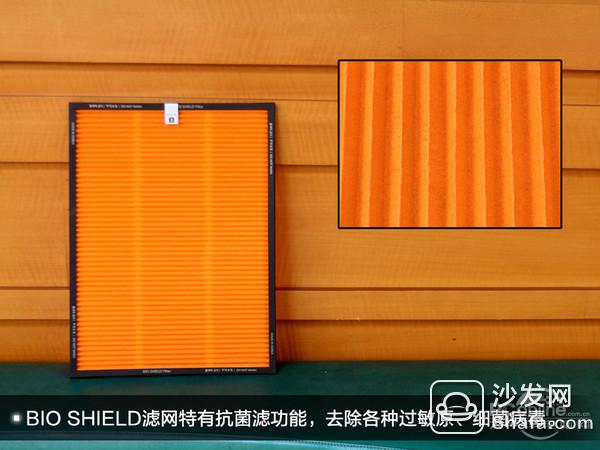

BIO SHIELD filter

OULIN WINIX's proprietary PLASMAWAVE and BIO SHIELD patented antibacterial filter technology can effectively and efficiently filter all kinds of microbial contamination caused by allergic diseases, influenza, bacteria, viruses, and molds. The filtration rate reaches 99.9%. The product does not contain any bactericide, maternity, infants and young children can worry-free use. The BIO SHIELD filter is not washable. There is a misunderstanding here, and some consumers will say that the ** brand filter can be washed, can save a lot of late investment. Indeed, the replacement of filters at a later stage requires a certain amount of investment, but here we must give everyone a little knowledge. A good filter is not washable. A cleaning reduces the efficiency of the filter. If the time is too long, the best way is to replace the filter and maintain the working efficiency.

Activated carbon filter

The use of glass fibers with good permeability as a carrier to make a deodorant filter honeycomb structure, to achieve a relatively larger adsorption area, low wind resistance, high air volume, efficient absorption of various odors and harmful substances. Formaldehyde purification efficiency is quite outstanding. Activated carbon filters are also non-cleanable. When used, they can often expose to the sun and prolong the life of activated carbon.

True HEPA filter

True HEPA is a medical-grade HEPA filter with a filter rating of H13, which is the highest level in the home sector. It has an efficiency of 99.97% for the interception of airborne dust, bacteria, viruses, germs, smoke and other 0.3 micron-sized pollutants. The True HEPA filter is also not washable.

Plasma Wave Patented Technology

Plasma group technology is a special ion group release device. OULIN WINIX air purifier will release a large amount of H+ positive ions and OH- negative ions before the work. After chemical reaction, OH hydroxide ions will produce active oxygen, OH hydroxide radicals. Ion-active oxygen can destroy the proteins in the bacteria cells, thus eliminating the biological activity of the bacteria. This technology is the same as the purification principle of nature, and it has no side effects on the human body, leaving indoor air fresh and natural like a forest. AR-SA'>Filters are also not washable.

●Air purifier purification capacity test

The indoor home purification effect of the average family is the key to determine the quality of the air purifier. This time we selected 25 square meters of room to simulate the home environment for testing. After igniting three cigarettes in a closed room to make it fully burned, second-hand smoke fills the room. Using the tester to test the PM2.5 index in the air, PM2.5 was measured every 10 minutes and the purifying effect of this air purifier was measured at different times.

After the cigarette burned, the odor diffused into the room. Using the air quality tester to test the indoor air pollution index, it was found that the 0.5um particle concentration value was as high as 169056, which was extremely heavy pollution level, and the indoor air could not breathe, and the smell was pungent.

Turn on the air purifier for testing

The air purifier was turned on, the wind speed was adjusted to the rapid purification mode for purification test, and the simulated home environment was checked every 10 minutes. The detector was used to test the change in the concentration of the particulate matter in the chamber, and the 10-micron particulate matter was reduced to an intermediate level of contamination by 10 minutes of purification capacity for 10 minutes.

Twenty minutes later, the 0.5-micron particles continued to drop, and the turbid smoke in the room gradually disappeared, but the dust sensor was relatively less sensitive. It is still red when it reaches the medium pollution level.

Thirty minutes passed and the smell of smoke and the smell of the nose disappeared. From the point of view of the inspection instrument, it had reached a healthy level, but the body display was still in a green state.

Summary: From the test of purification capacity, it can be seen that the OWE-A360WG air purifier of OULIN WINIX dropped to a moderate level of pollution after ten minutes of opening in a heavily contaminated environment, and the indoor air was not cloudy before. It has reached a healthy level after 20 minutes of decontamination. With the last test within 30 minutes of the specified time, indoor air purification has become clean. However, its dust detection response rate is relatively weak, and designers need to pay attention to it. In the subsequent improvement, the sensitivity of the sensor shift gear needs to be optimized.

● Air volume and noise test

Air volume test

Next, we will test the wind speed and use the five wind speeds respectively. The wind speed is an important factor in determining the CADR of the purifier. CADR is one of the indicators of decontamination ability. It can quickly circulate indoor air and output clean air. The OULIN WINIX OWE-A360WG air purifier, on both sides of the inlet, the top of the wind, to achieve a more rapid space purification.

Noise test

Many consumers want their products to be as silent as possible, especially when they need to be muted at night. Both can filter without affecting normal evening sleep. We also chose three gears to test this time. Because of the limited testing environment and the lack of soundproofing, we tested it in a 43dB office environment.

Summary: OULIN WINIX this OWE-A360WG air purifier fan unit output air volume is moderate, while the low-end position has a quiet design, in the noise test purification effect, especially in the silent mode basically did not feel the machine noise, in the original 43dB The data measured in the office environment is only 43.8 db (A), and the turbo mode is only 61.4 db. The user turns on the sleep gear at night to ensure that he can sleep well and achieve clean air at the same time.

● Power consumption test

The air purifier must be used for a long time, so the power used is particularly concerned. This time we have selected five stalls for testing. Test them separately to see how much power they are working on.

Summary: Discovered from the power consumption test OULIN WINIX this air purifier power consumption is very low in the sleep mode to the middle gear mode, especially in the sleep gear mode power is only 4.71W. Even if it stays on for a long time, users do not need to worry about its power consumption.

Summary of the article: OULIN WINIX OWE-A360WG air purifier reflects South Korea's exquisite CMF expression, metal wire drawing process, elegant and beautiful shape, highlights the high-end workmanship quality everywhere. Equipped with air quality detection function, the current air quality is reminded by multiple color lights. The five-fold purification system, combined with the unique PLASMAWAVE plasma wave patented technology, excels in the removal of formaldehyde, benzene and other decoration pollution and airborne bacteria, viruses and other harmful substances. Catering to high-end intelligent functions, you can use the mobile WIFI connection to intelligently monitor and manage indoor air quality. The machine fully embodies the Korean Seiko quality, the price is in the upper middle level, relatively suitable for high-end families to use.
