Jiangsu Xianda instrument magnetic flap level gauge installation and use need to pay attention to two points

At present, most of the factories in the industry need to equip the equipment with one or more sets of liquid level gauges, that is, liquid level measuring instruments, although there are many kinds of liquid level gauges on the market, and the factory equipment measures. The objects themselves are diverse, including different physical properties, different chemical properties, different functional requirements, different installation methods, different measurement methods, etc., which will result in different final level gauges. The liquid level gauge has radar, glass tube, float ball, magnetic flap, heavy hammer level gauge, quartz tube, boiler, ultrasonic, etc. Here we mainly talk about what should be paid attention to when the magnetic flap level gauge is installed and used. In order to play the role and effect that should have been.

First: The magnetic flap level gauge produced by Jiangsu Xianda is a magnetic float composed of a magnetic block with high temperature resistance and permanent magnetism. The magnetic float is used as the main component to participate in the measurement. Because it has magnetic properties, it is used in the magnetic flap level gauge. There should be no magnetic equipment or objects that interfere with the magnetic properties. Otherwise, it will affect the normal function of the magnetic float, which will lead to errors in the liquid level. Therefore, it is very important to install the surrounding environment using the magnetic flap level gauge. The things mentioned above.

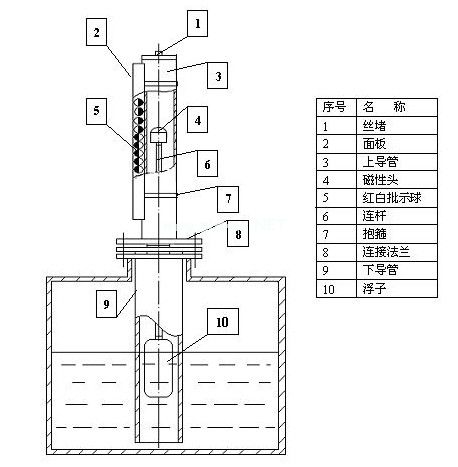

Second: At the beginning we said that the level gauge has different installation methods, so when installing the magnetic flap level gauge, whether you choose top mount (vertically inserted into the tank) or side mount (side flange mating) ), it is necessary to pre-open holes in equipment such as tanks. We know that the magnetic flap level gauge is flange mounted, so the opening on the equipment should be opened according to the manufacturer's flange standard, or the matching flange should be purchased with the manufacturer; or communicate in advance, let the manufacturer make a custom The flange size of the hole in the device can be the same.

The above two points are only the need to pay attention to the magnetic flap level gauge during installation and commissioning. The precautions for selection and the precautions for later use and maintenance will be discussed later.
