Wireless bridge and digital bridge bridging method

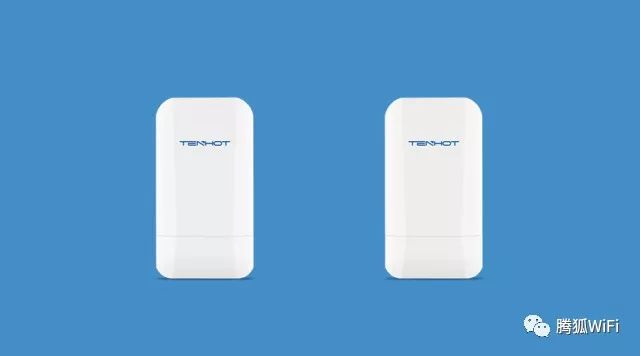

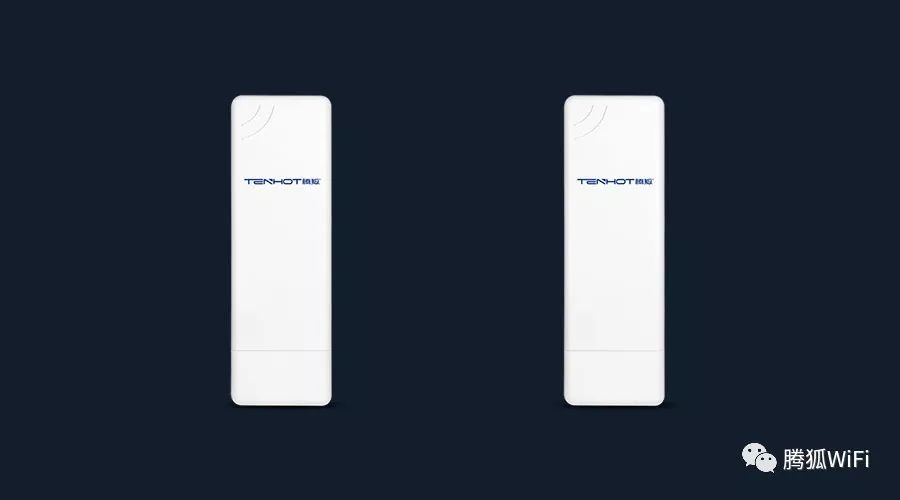

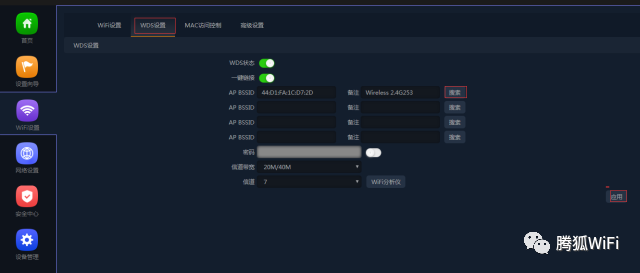

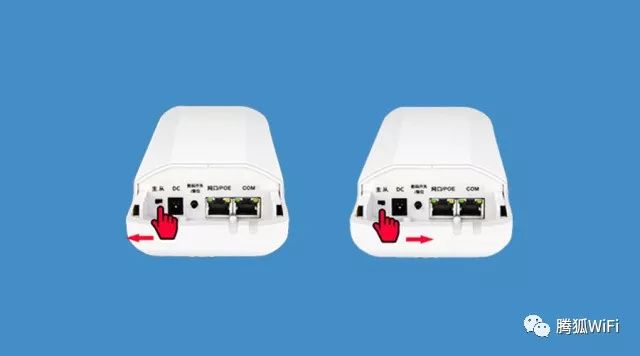

Bridge bridging methods actually have many, choose a good bridge, you can save a lot of computer set up, test, maintenance time, this dry cargo is specially prepared for the engineering business, super easy to operate bridge method, see it again and understand . Wireless bridge bridging method step 1 Preparatory preparation Teng Fox wireless bridge two 220v AC power supply two Step 2 Set master and slave Both bridges are connected to the POE port. One bridge can be dialed as one (IP: 192.168.188.252) and the other as slave (IP: 192.168.188.253). Step 3 Wifi name setting a. Connect the bridge device. Connect the other end of the network cable of the computer host to the LAN port. Use a browser to access the address of the bridge device. The login password is admin (the computer's IP address must be on the same network segment as the bridge device); Enter the address to access the device interface b. Connect the “master†bridge device (192.168.188.252), WiFi settings → WiFi settings, add a 252 after the WIFi name to distinguish it and then “applyâ€. As shown below: c. After the "master" bridge device is allocated, remove the network cable and insert it into the "slave" bridge device, connect the "slave" bridge device (192.168.188.253), WiFi settings → WiFi settings, add a 253 after the WIFi name. And then "apply". Step 4 Associated bridge a. On the slave bridge device, WiFi settings → WDS settings → Search behind the first AP BSSID, select in the pop-up window, click to select the WiFi name with 252, and then apply. As shown below: Click on "Search" b. Log in again to the “Home†bridge device, WiFi device, WDS device → “Search†behind the first AP BSSID, select in the pop-up window, click to select the WiFi name with 253, and then “Applyâ€. Step 5 test Under DOS, if the host network cable is connected to the “master†bridge device at the other end, “ping 192.168.188.253†is executed. If the ping is successful, the configuration is successful. Successful configuration Digital bridge bridging method step 1 Preparatory preparation Teng Fox digital bridge two 220v AC power supply two Step 2 Set master and slave One bridge is dialed to the master AP and the other bridge is dialed to the slave AP Step 3 Device pairing Short press the “Digital Switch/Reset†button, each press of the digital tube value will increase one (0-9-AC cycle) Step 4 Complete the setup Set the pairing bridge to the same value, that is, the configuration is successful and can be used normally.
What is a Capsule Slip Ring?
Capsule slip rings are a type of electrical connector that are used to transfer power and data between two rotating objects. They are commonly used in applications where there is a need to send or receive signals from a stationary object to a rotating one, or vice versa.
How Does it Work?
Capsule slip rings work by using a series of electrical contacts that rotate with the object on which they are mounted. These contacts are spaced evenly around the circumference of the ring, and as they rotate they make and break contact with corresponding contacts on the other object. This allows power and data to be transferred between the two objects without any interruption.
Advantages of Capsule Slip Rings
There are several advantages to using capsule slip rings in place of other types of electrical connectors.
For example, the rotation of the contacts causes them to be freely accessible and therefore free from dust and debris. This makes them ideal for applications where connector maintenance is often a problem.
Because the contacts are freely accessible, they can be readily replaced if a fault occurs. They also have very low electrical resistance, making them ideal for transmitting radio frequency signals. Because of the low resistance, this type of connector is often used in high-speed data transmissions.
This type of Conductive Slip Ring is similar to the shape of a hat. The brim part is a flange with a conductive slip ring. The function of the flange is to facilitate installation. It is connected to electrical equipment through the fixing hole of the flange. It can be firmly installed on the equipment. Therefore, the stator of the cap-type slip ring is generally fixed by the outer layer with a flange, and the inner part is the rotor with the inner shaft rotating. The stator and the rotor are not fixed, and the details will be different according to the installation method.
